SLP Series Order Form

SLP Series  Solenoid Valve

Position Description

Valve Series

Valve
Series

Mode of
Operation

Coil
Type

Coil
Class

Voltage

Seal
Material

Body
Material

Pipe
Size

Orifice
(mm)

Options

1

2

3

4

5

6

7

8

9

10

Mode of Operation
Coil Class
Coil Type
Voltage
Seal Material
Pipe Size
Orifice (mm)
Body Material
Options
Pipe Size
Orifice (mm)
Pipe Size
Orifice (mm)
Pipe Size
Orifice (mm)
Pipe Size
Orifice (mm)
Pipe Size
Orifice (mm)
Pipe Size
Orifice (mm)
Pipe Size
Orifice (mm)
Pipe Size
Orifice (mm)
Pipe Size
Orifice (mm)
Body Material
Pipe Size
Orifice (mm)

Thanks! We’ll send you a price quote shortly.

SLP Small Series Brass • Normally Closed

3/8" Normally Closed



Select your product:

Thanks for ordering!

SLP SERIES

SLP SMALL SERIES 2/2-WAY DIRECT ACTING SOLENOID VALVE · NORMALLY  CLOSED -  3/8" • Brass

SLP Small Series 2/2-Way Direct Acting Solenoid Valve • Normally Closed • Brass

SLP Small Series
Valve Series: SLP
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: Brass
Pipe Size: 3/8"
Orifice: 3.0 - 4.0mm
CV Factor: 0.3 - 0.6mm

  • 2/2-Way normally closed solenoid valve, Closed when de-energized, opened when energized

  • Ambient Temp: 0~65°C

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24C/ 50/60HZ/ 24VDC/12VDC

  • Seals: Can choose NBR, EPDM, VITON to fit to control of different media

  • Coil can fix SM Coil. AC 220V/AC 110V/AC 24V/DC24V

SLP Small Series SS316 • Normally Closed

3/8" Normally Closed



Select your product:

Thanks for ordering!

SLP SERIES

SLP SMALL SERIES 2/2-WAY DIRECT ACTING SOLENOID VALVE · NORMALLY  CLOSED -  3/8" • SS316

SLP Small Series
Valve Series: SLP
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: SS316
Pipe Size: 3/8"
Orifice: 3.0 - 4.0mm
CV Factor: 0.3 - 0.6mm

SLP Small Series 2/2-Way Direct Acting Solenoid Valve • Normally Closed • SS316

External Dimensions Chart

SLP Compact Series Brass • Normally Open

1/8" - 1/4" Normally Open



Select your product:

Thanks for ordering!

SLP SERIES

SLP COMPACT SERIES 2/2-WAY DIRECT ACTING SOLENOID VALVE • NORMALLY  OPEN -  1/8" - 1/4" • Brass

SLP Compact Series 2/2-Way Direct Acting Solenoid Valve • Normally Open

SLP Small Series
Valve Series: SLP
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON
Body Material: Brass
Pipe Size: 1/8" - 1/4"
Orifice: 1 - 4mm
CV Factor: 0.04 - 0.4mm

  • SLP Compact Series 2/2-Way Direct Acting Solenoid Valve • Normally Open

  • 2-Way Normally Open solenoid valve, Open when de-energized, Closed when Energized.

  • Serialized Products, small in size, large flow rate, widely used.

  • Body material: forged brass,316 stainless steel.

  • Ambient Temp. 0°C~65°C, Fluids Temp. 0°C~130°C.

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VI

       Voltage Tolerance + 10% to -10% applicable voltage can fix Nass coil.

  • The series valves are offered NBR, VITON, EPDM, etc. for seals and diaphragm to provide on-off control of various fluids.

SLP Compact Series 2-2-Way Direct Acting Solenoid Valve•Normally Open•Brass•DIN
SLP Compact Series 2-2-Way Direct Acting Solenoid Valve•Normally Open•SS316•DIN

SLP Compact Series SS316 • Normally Open

1/8" - 1/4" Normally Open



Select your product:

Thanks for ordering!

SLP SERIES

SLP COMPACT SERIES 2/2-WAY DIRECT ACTING SOLENOID VALVE · NORMALLY  OPEN • 1/8" - 1/4" • SS316

SLP Compact Series
Valve Series: SLP
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON
Body Material: SS316
Pipe Size: 1/4" -1/8"
Orifice: 1 - 4mm
CV Factor: 0.04 - 0.4mm

SLP Compact Series 2/2-Way Direct Acting Solenoid Valve • Normally Open • SS316

Normally Open

De-Energized

Open

Energized Open

Energized

Closed

External Dimensions

External Dimensions Chart

SLP Small Series Brass • Normally Open

1/4" - 1/2" Normally Closed



Select your product:

Thanks for ordering!

SLP SERIES

SLP SMALL SERIES 2/2-WAY PILOT OPERATED SOLENOID VALVE · NORMALLY  CLOSED -  1/4" - 1/2" • Brass

SLP Small Series 2/2-Way Pilot Operated Solenoid Valve • Normally Closed

SLP Small Series
Valve Series: SLP
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: Brass
Pipe Size: 1/4" - 1/2"
Orifice: 10.5mm Brass
CV Factor: 1.47 - 1.75

  • 2-Way Normally Closed solenoid valve, Closed when de-energized, Open when Energized.

  • Serialized Products, small in size, large flow rate, widely used.

  • Body material: forged brass, Orifice Φ10.5mm ,316 stainless steel Orifice Φ9mm.

  • Ambient Temp. 0°C~65°C, Fluids Temp. 0°C~130°C. (Max allowable pressure 17 bar, Brass)

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VI

  • Voltage Tolerance + 10% to -10% applicable voltage.

  • The series valves are offered NBR, VITON, EPDM, etc. for seals and diaphragm to provide on-off control of various fluids.

  • Coil can fix SM Coil. AC 220V/AC110V/AC24V/DC24V

SLP SMall Series 2-2-Way Pilot Operated Solenoid Valve•Normally Closed•Brass•DIN
SLP SMall Series 2-2-Way Pilot Operated Solenoid Valve•Normally Closed•SS316•DIN

SLP Small Series SS316 • Normally Open

1/4" - 1/2" Normally Closed



Select your product:

Thanks for ordering!

SLP SERIES

SLP SMALL SERIES 2/2-WAY PILOT OPERATED SOLENOID VALVE · NORMALLY  CLOSED -  1/4" - 1/2"• SS316

SLP Small Series
Valve Series: SLP
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: SS316
Pipe Size: 1/4" -1/2"
Orifice: 9mm
CV Factor: 1.2mm

SLP Small Series 2/2-Way Pilot Operated Solenoid Valve • Normally Closed

Normally Closed

De-Energized

Closed

Energized

Open

Energized Open
External Dimensions

External Dimensions Chart

SLP Compact Series Brass • Normally Closed

1/4" - 1/2" Normally Closed



Select your product:

Thanks for ordering!

SLP SERIES

SLP SMALL SERIES 2/2-WAY DIRECT ACTING SOLENOID VALVE · NORMALLY  CLOSED -  1/4" - 1/2" • Brass

SLP Small Series 2/2-Way Direct Acting Solenoid Valve • Normally Closed

SLP Small Series
Valve Series: SLP
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: Brass
Pipe Size: 1/4" - 1/2"
Orifice: 10.5mm
CV Factor: 1.47 - 1.75

  • 2-Way Normally Closed solenoid valve, Closed when de-energized, Open when Energized.

  • Serialized Products, small in size, large flow rate, widely used.

  • Body material: forged brass, Orifice Φ10.5mm ,316 stainless steel Orifice Φ9mm.

  • Ambient Temp. 0°C~65°C, Fluids Temp. 0°C~130°C.

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VI

  • Voltage Tolerance + 10% to -10% applicable voltage.

  • The series valves are offered NBR, VITON, EPDM, etc. for seals and diaphragm to provide on-off control of various fluids.

  • Coil can fix SM Coil. AC 220V/AC110V/AC24V/DC24V

SLP Small Series 2-2-Way Direct Acting Solenoid Valve • Normally Closed • Brass
SLP SMall Series 2-2-Way Pilot Operated Solenoid Valve•Normally Closed•SS316•DIN

SLP Compact Series SS316 • Normally Closed

1/4" - 1/2" Normally Closed



Select your product:

Thanks for ordering!

SLP SERIES

SLP SMALL SERIES 2/2-WAY DIRECT ACTING SOLENOID VALVE · NORMALLY  CLOSED -  1/4" - 1/2"• SS316

SLP Small Series
Valve Series: SLP
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: SS316
Pipe Size: 1/4" -1/2"
Orifice: 9mm
CV Factor: 1.2mm

SLP Small Series 2/2-Way Direct Acting Solenoid Valve • Normally Closed

Normally Closed

De-Energized

Closed

Energized

Open

Energized Open

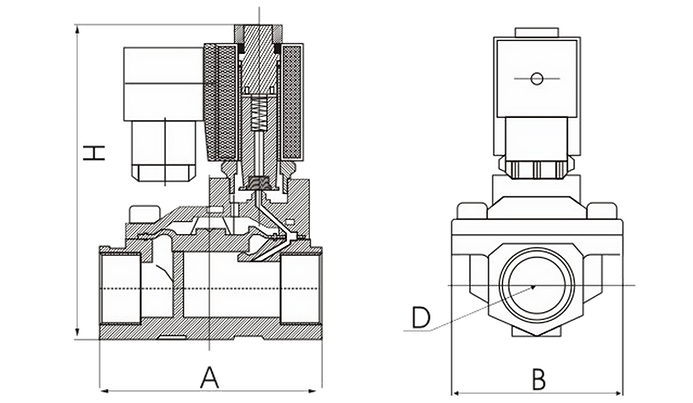

External Dimensions

External Dimensions Chart

SLP Small Series Brass • Normally Open

1/4" - 1/2" Normally Open



Select your product:

Thanks for ordering!

SLP SERIES

SLP SMALL SERIES 2/2-WAY PILOT OPERATING SOLENOID VALVE • NORMALLY  OPEN • 1/4" - 1/2" • Brass

SLP Small Series 2/2-Way Pilot Operated Solenoid Valve • Normally Open

SLP Small Series
Valve Series: SLP
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON
Body Material: Brass
Pipe Size: 1/4" - 1/2"
Orifice: 10.5mm
CV Factor: 1.47 - 1.75mm

  • 2-Way Normally Closed solenoid valve, Open when de-energized, Closed when Energized.

  • Serialized Products, small in size, large flow rate, widely used.

  • Body material: forged brass, Orifice Φ10.5mm ,316 stainless steel Orifice Φ9mm.

  • Ambient Temp. 0°C~65°C, Fluids Temp. 0°C~130°C.

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VI

  • Voltage Tolerance + 10% to -10% applicable voltage.

  • The series valves are offered NBR, VITON, EPDM, etc. for seals and diaphragm to provide on-off control of various fluids.

SLP Small Series 2-2-Way Pilot Operated Solenoid Valve•Normally Normally Open Brass•DIN
SLP Small Series 2-2-Way Pilot Operated Solenoid Valve•Normally Normally Open•SS316•DIN

SLP Small Series SS316 • Normally Open

1/4" - 1/2" Normally Open



Select your product:

Thanks for ordering!

SLP SERIES

SLP SMALL SERIES 2/2-WAY PILOT OPERATED SOLENOID VALVE · NORMALLY  OPEN • 1/4" - 1/2" • SS316

SLP Small Series
Valve Series: SLP
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON
Body Material: SS316
Pipe Size: 1/4" -1/2"
Orifice: 9mm
CV Factor: 1.2mm

SLP Small Series 2/2-Way Pilot Operated Solenoid Valve • Normally Open

Normally Open

De-Energized

Open

Energized Open

Energized

Closed

External Dimensions

External Dimensions Chart

1 - 1_1.4

SLP Large Diameter Brass • Normally Closed

3/8" - 2" Normally Closed



Select your product:

Thanks for ordering!

SLP SERIES

SLP SERIES 2/2-WAY LARGE DIAMETER OPERATED SOLENOID VALVE · NORMALLY  CLOSED -  1/4" - 1/2" • Brass

SLP 2/2-Way Large Diameter Pilot Operated Solenoid Valve • Normally Closed

SLP Large Diameter Series
Valve Series: SLP
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: Brass
Pipe Size: 3/8" - 2"
Orifice: 13 - 50mm
CV Factor: 4.5 - 48mm

  • 2-Way Normally Closed solenoid valve, Closed when de-energized, Open when Energized.

  • Serialized Products, small in size, large flow rate, widely used.

  • Body material: forged brass, 316 stainless steel

  • Ambient Temp. 0°C~65°C, Fluids Temp. 0°C~130°C.

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VI

  • Voltage Tolerance + 10% to -10% applicable voltage.

  •

  • The series valves are offered NBR, VITON, EPDM, etc. for seals and diaphragm to provide on-off control of various fluids.

1_1.2 - 2 Brass
Flange

SLP Large Diameter SS316 • Normally Closed

3/8" - 2" Normally Closed



Select your product:

Thanks for ordering!

SLP SERIES

SLP SERIES 2/2-WAY LARGE DIAMETER OPERATED SOLENOID VALVE · NORMALLY  CLOSED -  1/4" - 1/2" • SS316

SLP Large Diameter Series
Valve Series: SLP
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: SS316
Pipe Size: 3/8" - 2"
Orifice: 13 - 50mm
CV Factor: 4.5 - 48mm

SLP 2/2-Way Large Diameter Pilot Operated Solenoid Valve • Normally Closed

Normally Closed

De-Energized

Closed

Energized

Open

Energized Open
External Dimension

External Dimensions Chart

Flow Chart

Flow Chart

SLP Large Diameter SS316 • Normally Closed

Flanged Normally Closed



Select your product:

Thanks for ordering!

SLP SERIES

SLP SERIES 2/2-WAY LARGE DIAMETER OPERATED SOLENOID VALVE · NORMALLY  CLOSED • SS316 • Flanged Connection

SLP Large Diameter Series
Valve Series: SLP
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: SS316
Pipe Size: Flange
Orifice: 25 - 100mm
CV Factor: 12 - 128mm

SLP 2/2-Way Large Diameter Pilot Operated Solenoid Valve • N/C • Flange
External Dimension

External Dimensions Chart

Chart

 Chart

SLP Plastic Series Nylon • Normally Closed

3/8" -  1 1/2" Normally Closed



Select your product:

Thanks for ordering!

SLP SERIES

SLP PLASTIC SERIES 2/2-WAY PILOT OPERATED SOLENOID VALVE · NORMALLY  CLOSED -  3/8" - 1 1/2" • Nylon

SLP Plastic Series 2/2-Way Pilot Operated Solenoid Valve • Normally Closed

SLP Small Series
Valve Series: SLP
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: Nylon
Pipe Size: 3/8" - 1 1/2"
Orifice: 13 - 40mm
CV Factor: 4.5 - 30

  • 2-Way Normally Closed solenoid valve, Closed when de-energized, Open when Energized.

  • Body material: Nylon

  • Max. Allowable pressure 13kgf/cm²; Ambient Temp. 0°C ~ 65°C

  • Serialized Products, small in size, large flow rate, widely used.

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VDC

  • Voltage Tolerance + 10% to -10% applicable voltage.

  •

  • The series valves are offered NBR, VITON, EPDM, etc. for seals and diaphragm to provide on-off control of various fluids.

  • Coil can fix SM Coil. AC 220V/AC110V/AC24V/DC24V

Nylon Solenoid Valve

SLP Large Diameter Series Brass • Normally Open

3/8" - 2" Normally Open



Select your product:

Thanks for ordering!

SLP SERIES

SLP 2/2-WAY  LARGE DIAMETER PILOT OPERATING SOLENOID VALVE • NORMALLY  OPEN • 3/8" - 2" • Brass

SLP 2/2-Way Large Diameter Pilot Operated Solenoid Valve • Normally Open

SLP Large Diameter
Valve Series: SLP
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON
Body Material: Brass
Pipe Size: 3/8" - 2"
Orifice: 13 - 50mm
CV Factor: 4.5 - 48mm

  • 2-Way Normally Closed solenoid valve, Closed when de-energized, Open when Energized.

  • Body material: Brass, SS316 Stainless Steel

  • Max. Allowable pressure 16kgf/cm² (Brass) 12kgf/cm² (Brass); Ambient Temp. 0°C ~ 65°C

  • Serialized Products, small in size, large flow rate, widely used.

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VI

  • Voltage Tolerance + 10% to -10% applicable voltage.

  • The series valves are offered NBR, VITON, EPDM, etc. for seals and diaphragm to provide on-off control of various fluids.

1 - 1_1.4 Brass
3.8 - 3.4 SS

SLP Large Diameter Series Brass • Normally Open

3/8" - 2" Normally Open



Select your product:

Thanks for ordering!

SLP SERIES

SLP 2/2-WAY  LARGE DIAMETER PILOT OPERATING SOLENOID VALVE • NORMALLY  OPEN • 3/8" - 2" • SS316

SLP Large Diameter
Valve Series: SLP
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON
Body Material: SS316
Pipe Size: 3/8" - 2"
Orifice: 13 - 50mm
CV Factor: 4.5 - 48mm

SLP 2/2-Way Large Diameter Pilot Operated Solenoid Valve • Normally Open

Normally Open

De-Energized

Open

Energized Open

Energized

Closed

External Dimensions Chart

External Dimension

SLP Large Diameter SS316 • Normally Open

Flanged Normally Open



Select your product:

Thanks for ordering!

SLP SERIES

SLP SERIES 2/2-WAY LARGE PILOT OPERATEDSOLENOID VALVE · NORMALLY  OPEN • SS316 • Flanged Connection

SLP Large Diameter Series
Valve Series: SLP
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON
Body Material: SS316
Pipe Size: Flange
Orifice: 25 - 100mm
CV Factor: 12 - 128mm

SLP 2/2-Way Flange Large Diameter Pilot Operated Solenoid Valve • Normally Open
External Dimension Flange

External Dimensions Chart

 Chart

External Chart

SLP Plastic Series Nylon • Normally Open

3/8" -  1 1/2" Normally Open



Select your product:

Thanks for ordering!

SLP SERIES

SLP PLASTIC SERIES 2/2-WAY PILOT OPERATED SOLENOID VALVE · NORMALLY  OPEN -  3/8" - 1 1/2" • Nylon

SLP Plastic Series 2/2-Way Pilot Operated Solenoid Valve • Normal

SLP Small Series
Valve Series: SLP
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON
Body Material: Nylon
Pipe Size: 3/8" - 1 1/2"
Orifice: 13 - 40mm
CV Factor: 4.5 - 30

  • 2-Way Normally Open solenoid valve, Open when de-energized, Closed when Energized.

  • Body material: Nylon (PA6)

  • Max. Allowable pressure 13kgf/cm²; Ambient Temp. 0°C ~ 65°C

  • Serialized Products, small in size, large flow rate, widely used.

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VDC

  • Voltage Tolerance + 10% to -10% applicable voltage.

  • The series valves are offered NBR, VITON, EPDM, etc. for seals and diaphragm to provide on-off control of various fluids.

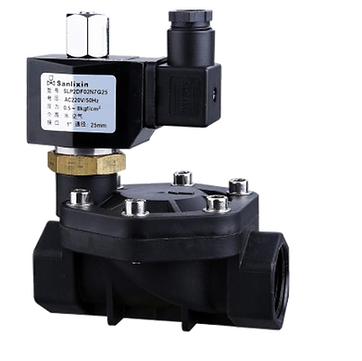

SLP Plastic Series 2-2-Way Pilot Operated Solenoid Valve • Normally Open
bottom of page
